Spesifikasie
Model Nr | AIN HP5.1L-A1 | AIN HP7.6L-A1 | AIN HP10.2L-A1 |
Nominal Parameters | |||
Spanning | 48/51.2V | 48/51.2V | 48/51.2V |
kapasiteit | 100Ah | 150Ah | 200Ah |
energie | 5.12kwh | 7.68kwh | 10.24kwh |

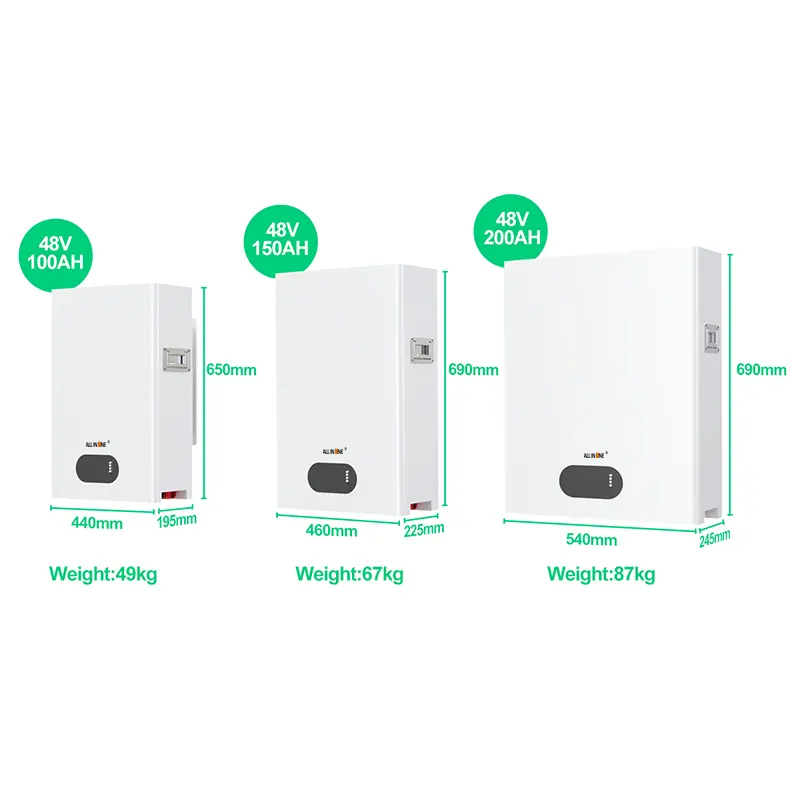

Dimensions (L xWxH) | 440x695x195mm | 460x690x225mm | 540x690x245mm |
gewig | 49kg | 67kg | 87kg |
Basiese parameters | |||
Life Times (25C) | 20 Years | 20 Years | 20 Years |
Life Cycles (80% DOD, 25°C) | 5000 Cycles | 5000 Cycles | 5000 Cycles |
Storage Time /Temperature | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C |
Bedryfstemperatuur | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity |
Stoor temperatuur | 0°C tot 45°C @60+/-25% relatiewe humiditeit | 0°C tot 45°C @60+/-25% relatiewe humiditeit | 0°C tot 45°C @60+/-25% relatiewe humiditeit |
Litium battery standaard | 1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||
Enclosure Protection Rating | IP31Rating | ||
Electrical Parameter | |||
Operation Voltage | 40-57.6Vdc | 40-57.6Vdc | 40-57.6Vdc |
Max charging Voltage | 58Vdc | 58Vdc | 58Vdc |
Max charging and Dis charging Current | 100A | 150A | 200A |
Maksimum krag | 5120W | 7680W | 10240W |
Ons fabriek
ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.
Vrae
V: Is u handelsonderneming of vervaardiger?
A: We are ALL IN ONE original factory.
V: Kan ek monsters hê om te toets? En wat is die levertyd vir voorbeeldorde?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
V: Verskaf u na-verkope diens?
A: Ja, die waarborg is 12 maande, as daar kwaliteitsprobleme in hierdie periode aan ons kant is, kan ons 'n nuwe een as vervanging stuur.
V: Aanvaar u OEM / ODM?
A: Ja, dit is beskikbaar.
V: Is u werklike kapasiteit in die battery?
A: Al ons batteryselle met 'n graad A, 100% nuwe en werklike kapasiteit.
V: Watter soort sertifikate het u?
A: Ons kan CE, ROHS, FCC, IEC62133, MSDS, UN38.3 voorsien as u bestelhoeveelheid groot is.
V: Het u MOQ?
A: Geen beperking nie. Klein bestelling ook welkom. Meer hoeveelheid het 'n beter prys, ons sal die beste prys vir u kontroleer.
V: Wat is u betalingstermyn?
A: Ons neem T / T, Paypal, Alibaba betaling manier en so aan.
Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
