Pasgemaakte diepsiklus 36V 48V 72V 50ah 80ah 100ah litiumbattery vir gholfkarretjie RV kampeerder

2024-03-15 02:39

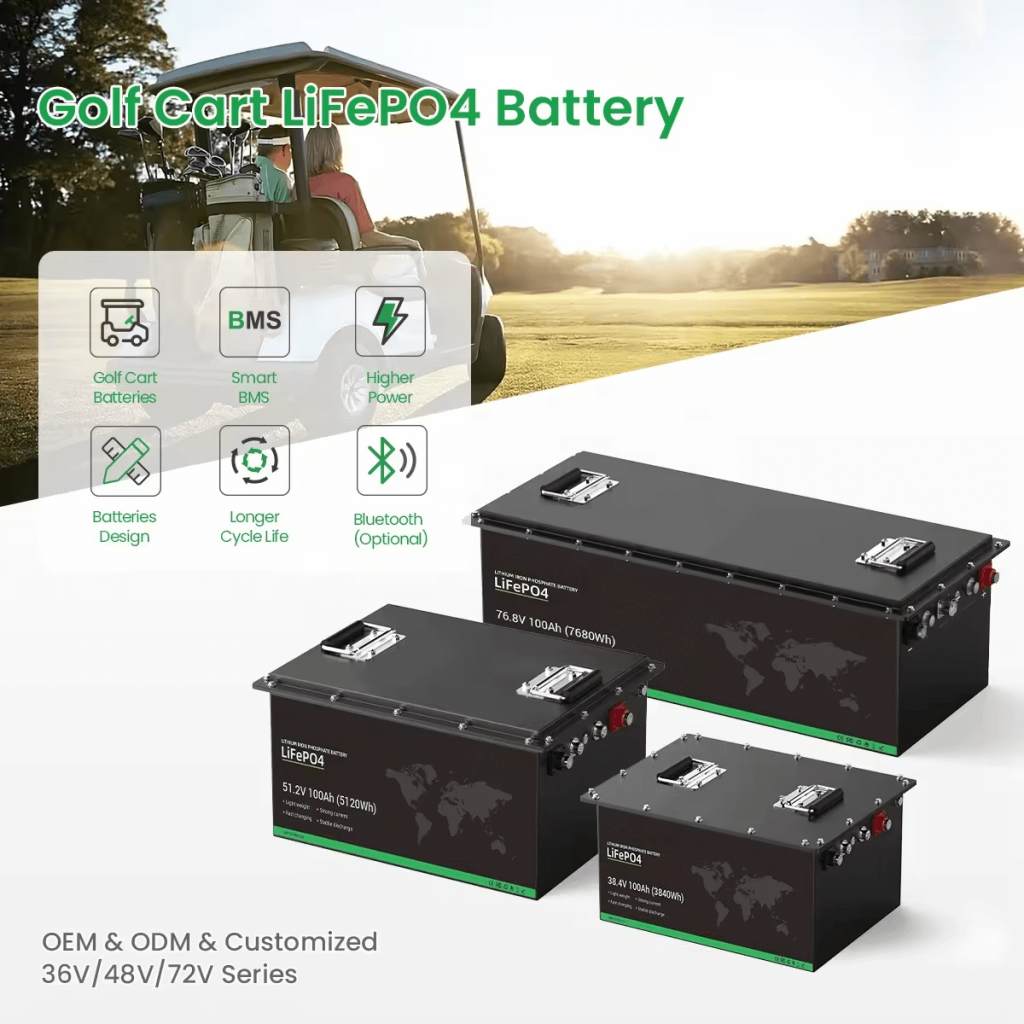

LiFePO4-battery vir gholfkarretjie (OEM/ODM) TEGNIESE SPESIFIKASIE
Data sheet	Nominale spanning	Nominale kapasiteit	Nominale Energie	dimensie	gewig
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50Ah	1920Wh	522*238*218mm	≈18.5 kg
LFP36-60	38.4V	60Ah	2304Wh	522*238*218mm	≈21 kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5 kg
LFP36-100	38.4V	100Ah	3840Wh	522*238*218mm	≈31 kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25 kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31 kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5 kg

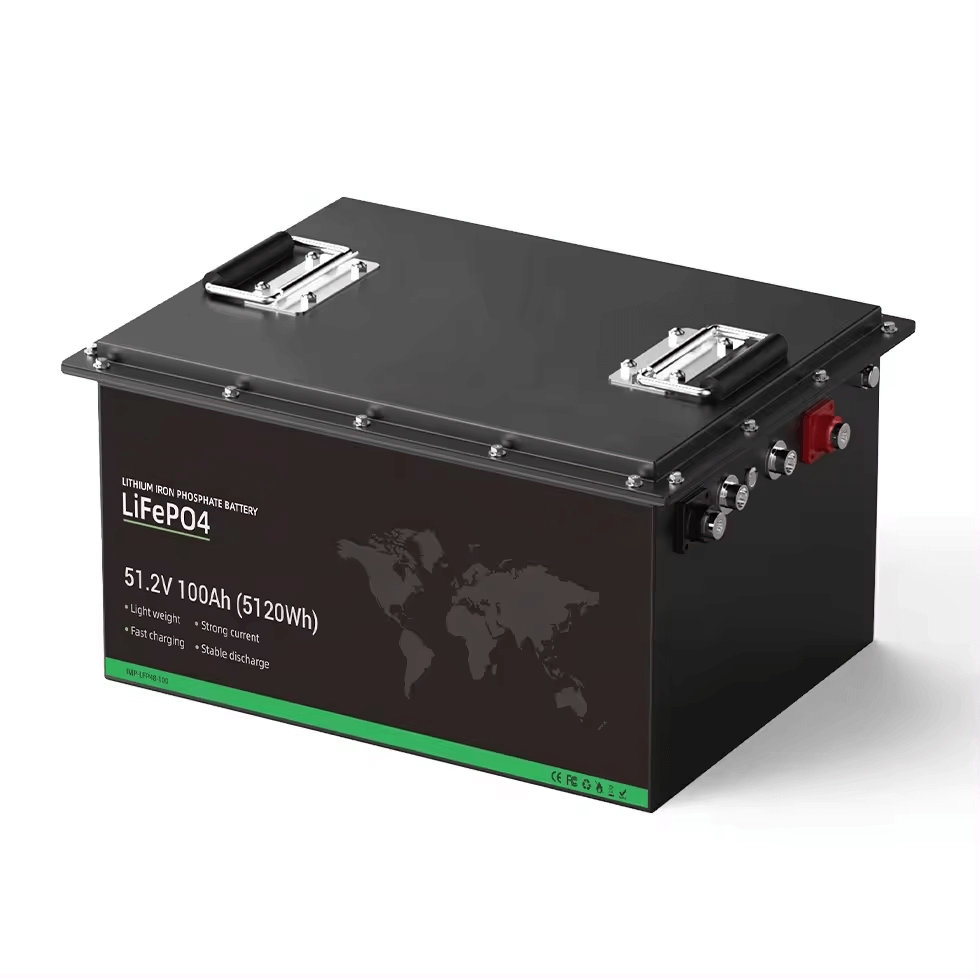

LFP48-100	51.2V	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50 kg

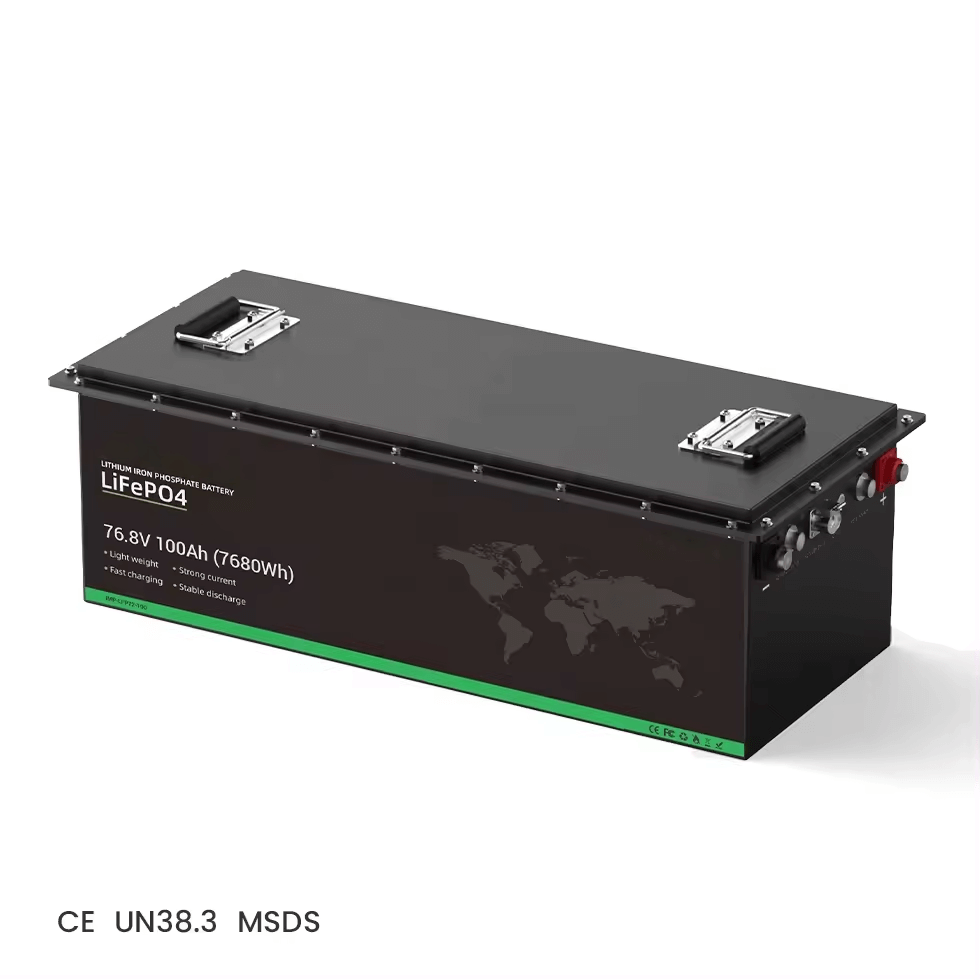

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65 kg
Algemeen
Lewensiklusse		≥6000 siklusse (80%DOD), teen 25°C
Laai temperatuur		0 ~ 45°C (32 ~ 113°F)
Ontladingstemperatuur		-20 ~ 55°C (-4 ~ 131F)
Stoor temperatuur		-10 ~ 45°C (14 ~ 113°F)
Kommunikasie Mod		Voertuig KAN/ Laai KAN/ Intranet KAN/ 485 kommunikasie/ Draadlose kommunikasie

Die Regte Keuse

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Optrede

1. Enkelbatterywerking
2. Min of geen spanningsval
3. Vinnige reisspoed op alle vlakke van ontlading

ALL IN ONE Battery Safety and Sustainability

1. Geen suurdampe of -stortings nie
2. Verminder die gebruik van elektrisiteit
3. Less waste
4. 99% recyclable

aansoek

Ons fabriek



Versending en verpakking

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Vir groot bestelling, stuur per AIR of OCEAN.

Vrae

V: Is u handelsonderneming of vervaardiger?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

V: Kan ek monsters hê om te toets? En wat is die levertyd vir voorbeeldorde?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

V: Aanvaar u OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

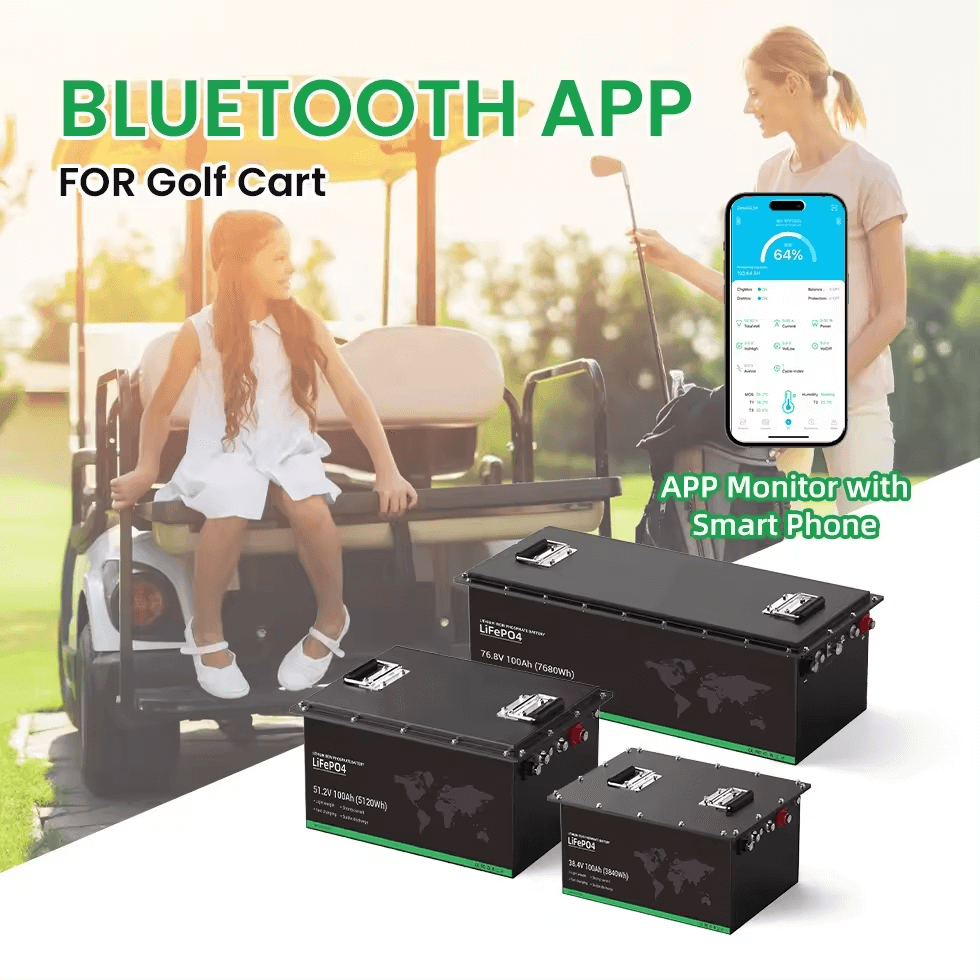

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: JA, die toepassing laat jou toe om die spanning van elkeen te eniger tyd te lees.

V: Is u werklike kapasiteit in die battery?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

V: Watter soort sertifikate het u?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

V: Het u MOQ?
A: Geen beperking nie. Klein bestelling ook welkom. Meer hoeveelheid het 'n beter prys, ons sal die beste prys vir u kontroleer.

V: Wat is u betalingstermyn?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Gebruik litiumlaaiers om die battery wakker te maak. Die litiumlaaier maak die batterye outomaties wakker.
