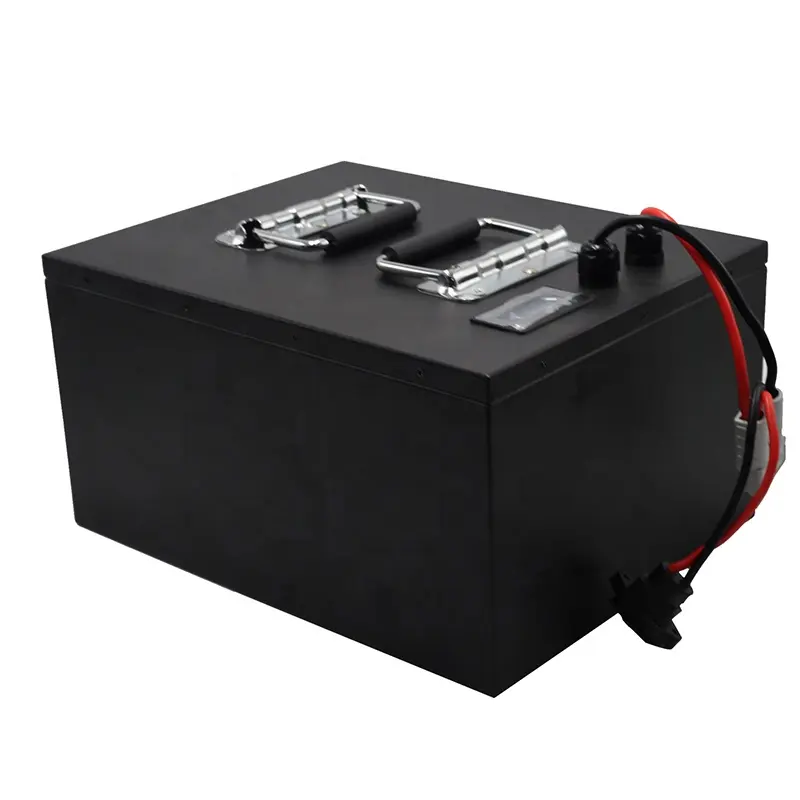

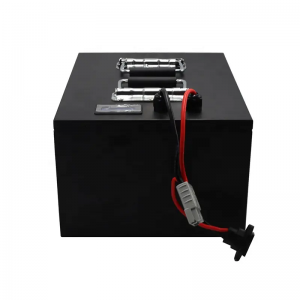

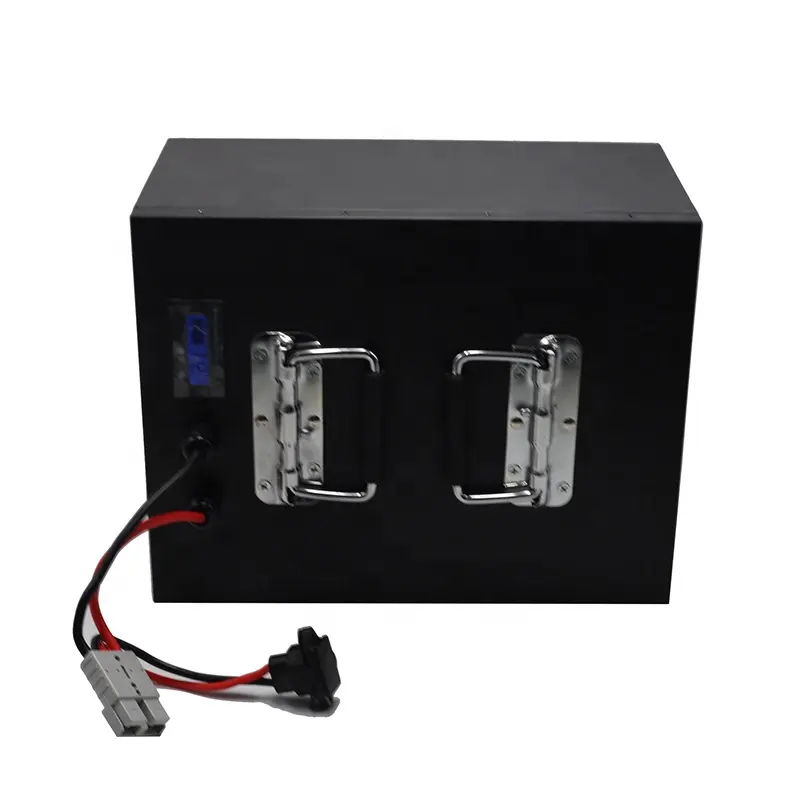

Pasgemaakte LiFePO4 Battery Pack 72v 60ah Elektriese Voertuig Battery Litium Ion Pack vir EV Motors

2023-06-06 02:13

Spesifikasie

Handelsnaam	ALLES IN EEN
model	AIN7260
waarborg	5 jaar
Nominale spanning	76.8V
Nominale kapasiteit	[email protected]/customize
energie	4416Wh
Interne weerstand	≤50mΩ
Fietslewe	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Self-ontslag	≤3,5% per maand teen 25 ℃
Maks. Laaispanning	87.6 V
Laaimodus	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Laadstroom	30A
Maks. Laaistroom	60A
Ontladingsstroom	30A
Max. discharge Continuous Current	60A
Max. Polsstroom	120A(<3S）
Ontlading van afsnyspanning	60V
Laai temperatuur	0 ℃ tot 45 ℃ (32 ℉ tot 113 ℉) @ 60 ± 25% relatiewe humiditeit
Ontladingstemperatuur	-20 ℃ tot 60 ℃ (-4 ℉ tot 140 ℉) @ 60 ± 25% relatiewe humiditeit
Stoor temperatuur	0 ℃ tot 45 ℃ (32 ℉ tot 113 ℉) @ 60 ± 25% relatiewe humiditeit
Waterstofbestandheid	IP55
Sel en formaat	LFP  60AH 24S1P/customize
Omhulsel	Metal Case
Dimensie (L * W * H * TH)	aanpas
gewig	50kg
Terminaal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Laai metode	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
sertifikaat	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

herinnering

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

aansoek

Ons fabriek

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Verpakking en versending

verpakking

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Gestuur

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Vrae

V: Hoe moet ek betaal? Watter betaalmetodes aanvaar u?
A: T/T, PayPal, Western Union.

V: Is monsterbestelling aanvaarbaar?
A: Ja, vir die meeste batterye is bestellings vir die toets van gehalte redelik en aanvaarbaar.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Vir skade veroorsaak, soos bult/gelas van batterye, battery pack sonder beskerming BMS veroorsaak deur laai.
