E-fiets 36V 15AH Litium Li-ion battery vir elektriese fiets 200W tot 500W motor

2024-05-30 06:38

SPECIFICATIONS
Geen.	items	spesifikasies	opmerking
1	Seltipe	18650, 2500mAh,3.7V

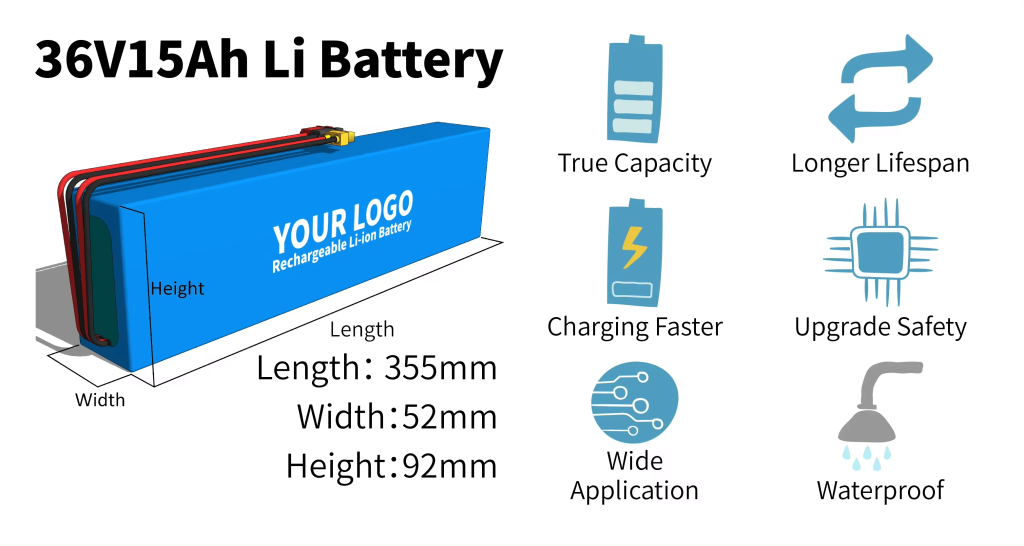

2	grootte	355×92×52±2mm	Length×Width×Height
3	Spesifikasie	36V15Ah
4	Typical Rated capacity	15Ah	0.2C Discharge
5	Minimum kapasiteit	14.4Ah	0.2C Discharge
6	energie	540Wh
7	MAX Charge voltage	42±0.2V
8	Standaardheffing	5.2A	CC/CV, 0.2C5A, 42V
9	End-of-charge Current	300mA	0.02C5A
10	Standaard ontslag	7.5A	CC, 0.5C5A, 28V
11	Maksimum laadstroom	5A
12	Maksimum afvoerstroom	20A
13	Los afsnitspanning af	≥28V
14	Nominale spanning	36V/pack
15	Internal resistant	≤110mΩ
16	Over current protection current	100±10A
17	Temperature range for storage	minder as 1 maand	-20~45°℃
		less than 6 month	-20~35°℃
18	Operating temperature range	ontslag	-20 ~ 50 ℃
		beheer	0 ~ 50 ℃
19	Fietslewe	≥500 cycles

Ons voordele

Qualified Cells

UL,IEC certified cells with cycle life 3000times and qualified.

Smaller Size & Low weight

Our battery is just 3/4 size of the other supplier standard size.

Excellent Battery Management System

Core components are worldwide famous brand to ensure high accuracy.

Excellent Craft

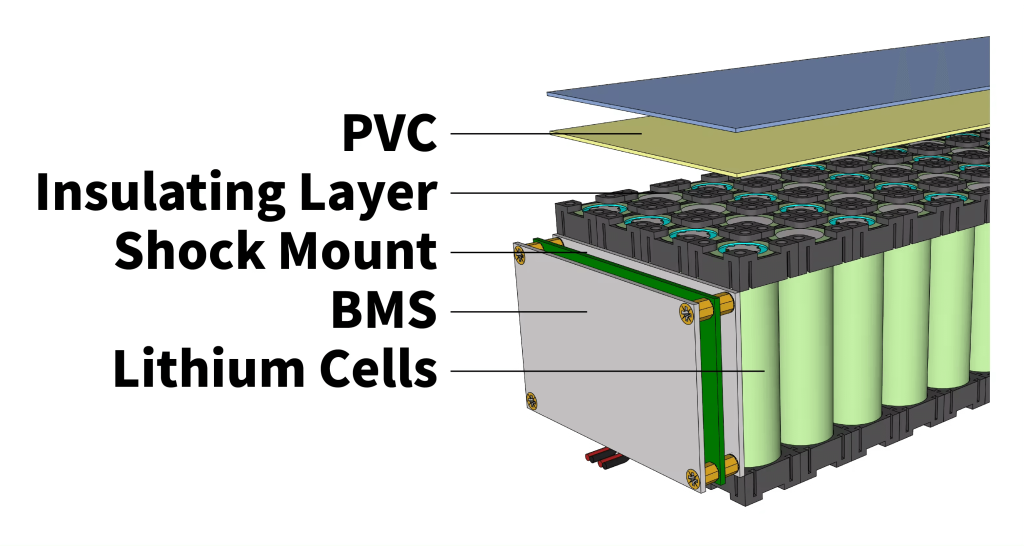

Neat, tidy and protected wiring to avoid wires dropped. All cells with holder improve heat dissipation to lower down the cell temperature and then prolong life-span.

Quality Control For Battery

Perfect Cells

All from China famous branded cells partners.

Cell Grouping

Strict Cell Grouping standard, all cells from one batch, the difference of Cell Internal Resistance: within 1mΩ, voltage: within 3mv to ensure the pack has best consistency.

Automatic Machinery

Cells are assembled with 3kw fully automatic laser welding machines or high power automatic spot welding machines to ensure quality reliability.

BMS Testing

All BMS are tested, specially to make sure the BMS has low sleeping consumption current.

100% Pack Testing

All battery packs are 100% Fully Tested(Fully Discharge--Fully Charge--Fully Discharge--80% Charged) before package,and all test reports are stored.Unique Tracing No.

aansoek

Lithium Battery Main Applications
Toepassings vir elektriese aandrywing	Engine starting battery; Slow Speed Car; Intellectual robots; Electric bicycle/Motorcycle/Scooter; Golf trolley/Carts/ Sightseeing car; Power tools.
Energie stoor	son- en windkragstelsel; stad aan / uit rooster; gemeenskap en gesin, RV Caravan, Marine yachts.
Rugsteunstelsel en UPS	telekommunikasiebasis, CATV-stelsel, rekenaarbedienersentrum, mediese instrument, militêre toerusting.
Ander toepassings	sekuriteit en elektronika; mobiele POS, mynlig / fakkel / LED-lig / noodlig.

Verpakking en versending



Vrae

1,Q: What's the main product ?

A: Herlaaibare battery. Li-ion, Lipo-battery en kragbatterypakket.

2, V: Wat is oorbelasting?

A: Na laai, toets die batterye se aanvanklike toestand en kapasiteit. Laai tot 10,0V by 3C stroom, laai dan op 0,01C in CV-modus. Let op die veranderinge in die voorkoms van die battery.

3, V: Wat is oorontlading?

A: Toets die batterye se aanvanklike toestand na laai. As die batterye normaal is, ontlaai dit tot 0V by 0,5C. Let op die veranderinge in die voorkoms van die battery.

4, V: Kan ek 'n voorbeeldbestelling hê?

A: Ja, ons aanvaar die bestelling om die kwaliteit te toets en na te gaan. Batterye kan gemaak word soos benodig.

5, V: Het u 'n MOQ-limiet?

A: Ja, ons het 'n MOQ-limiet vir massaproduksie, maar dit hang af van die batterymodel. Kontak ons gerus vir meer inligting.

6, Q: How about the lead time?

A: monsters duur 5-7 werksdae. Massaproduksie duur 25-30 dae. Dit hang af van hoeveelheid.

7, V: Hoe gaan dit met afleweringstyd?

A: Oor die algemeen sal die battery via Express gestuur word, soos DHL, TNT, FedEx en UPS, die afleweringstyd is 3-5 werksdae. Of DDP-diens, afleweringstyd is 11-15 werksdae. Lugdiens- en seevaart is ook beskikbaar.

8, V: Wat van die naverkoopdiens?

A: Ons bied u 1 jaar waarborg. As daar probleme is, stel ons asseblief in kennis, ons sal u positiewe oplossings bied.
