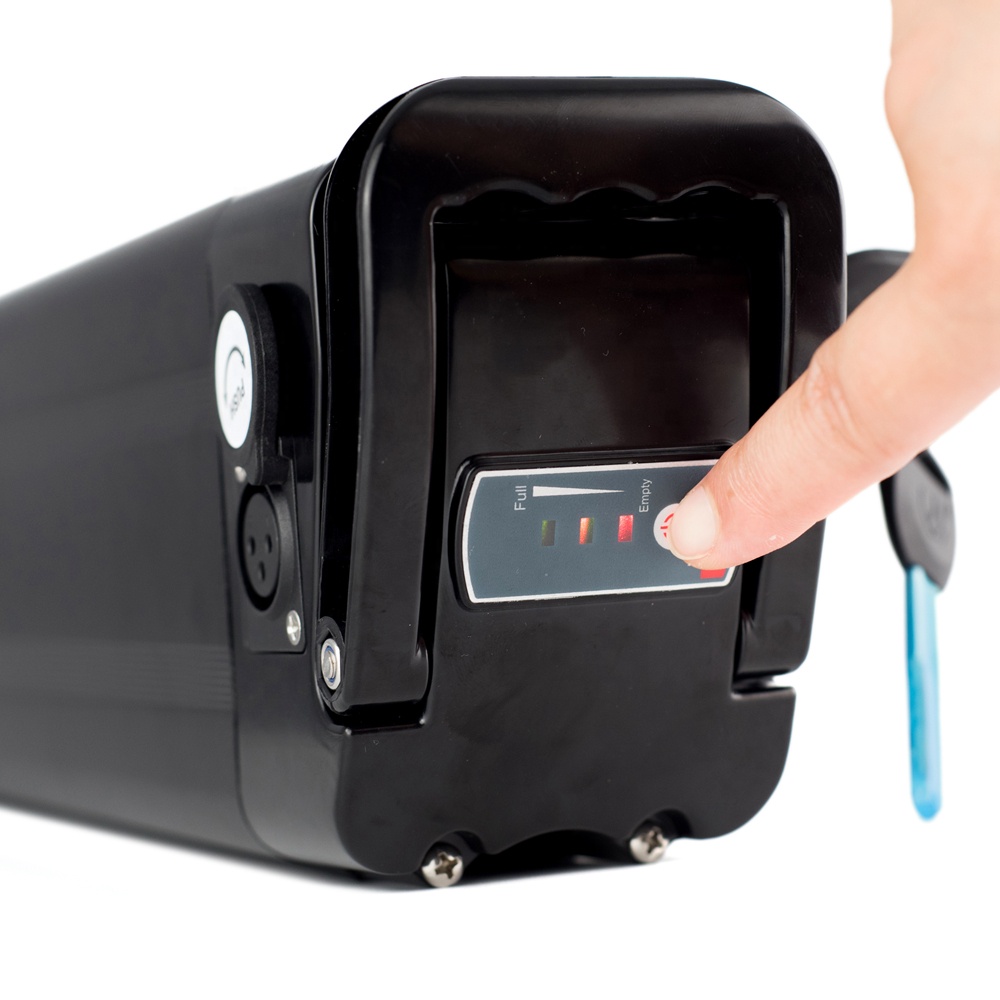

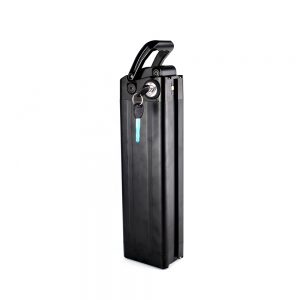

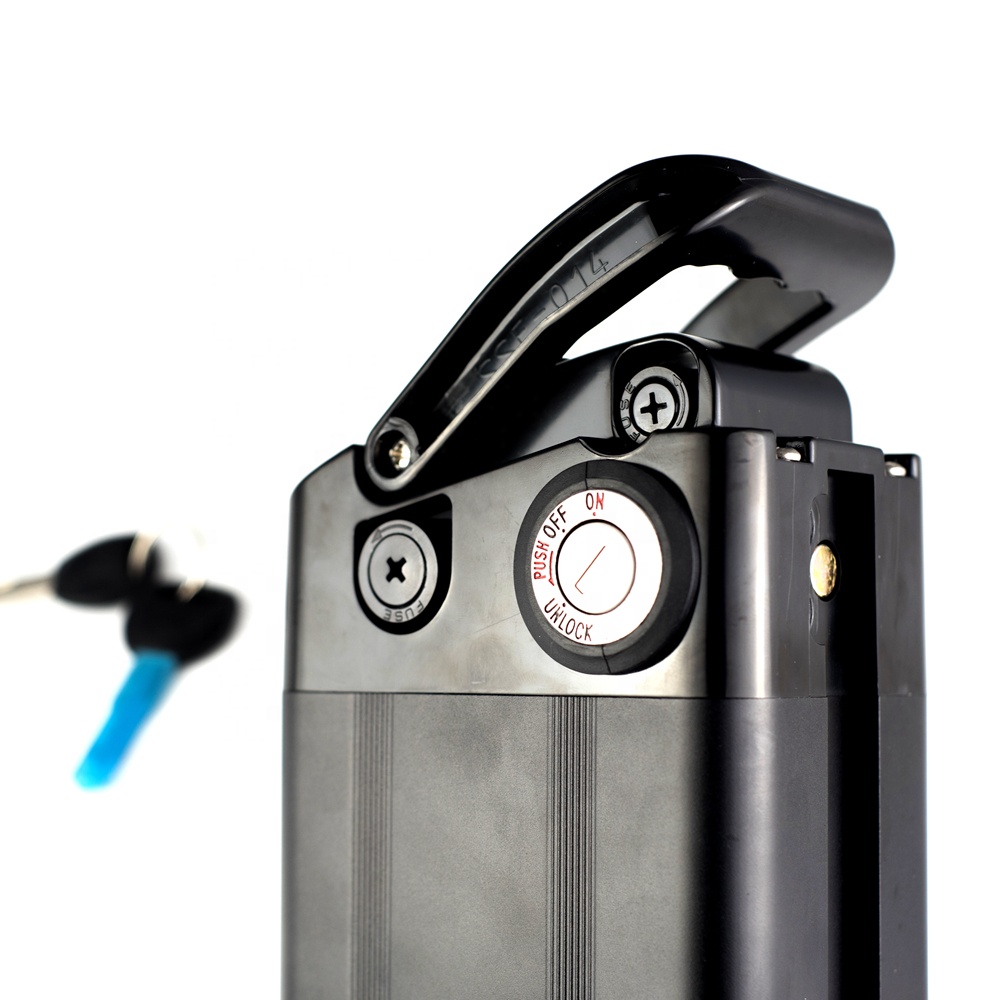

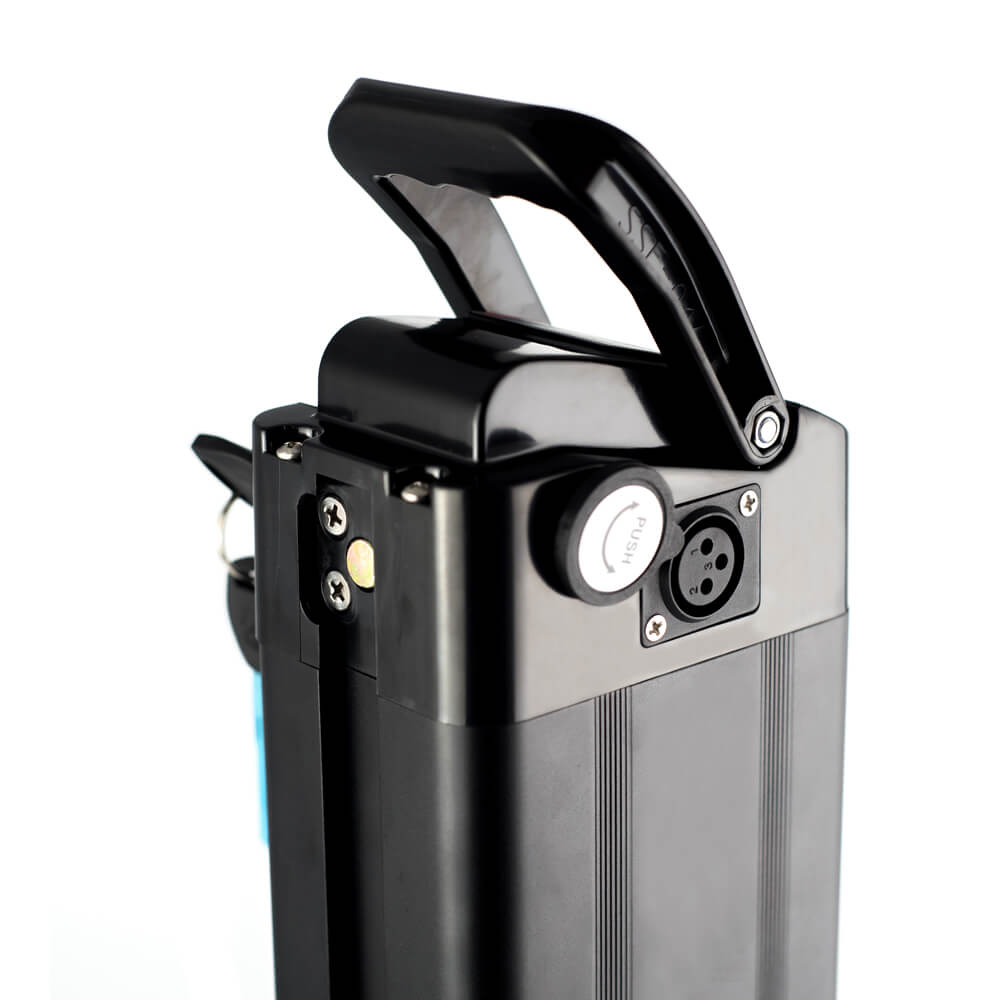

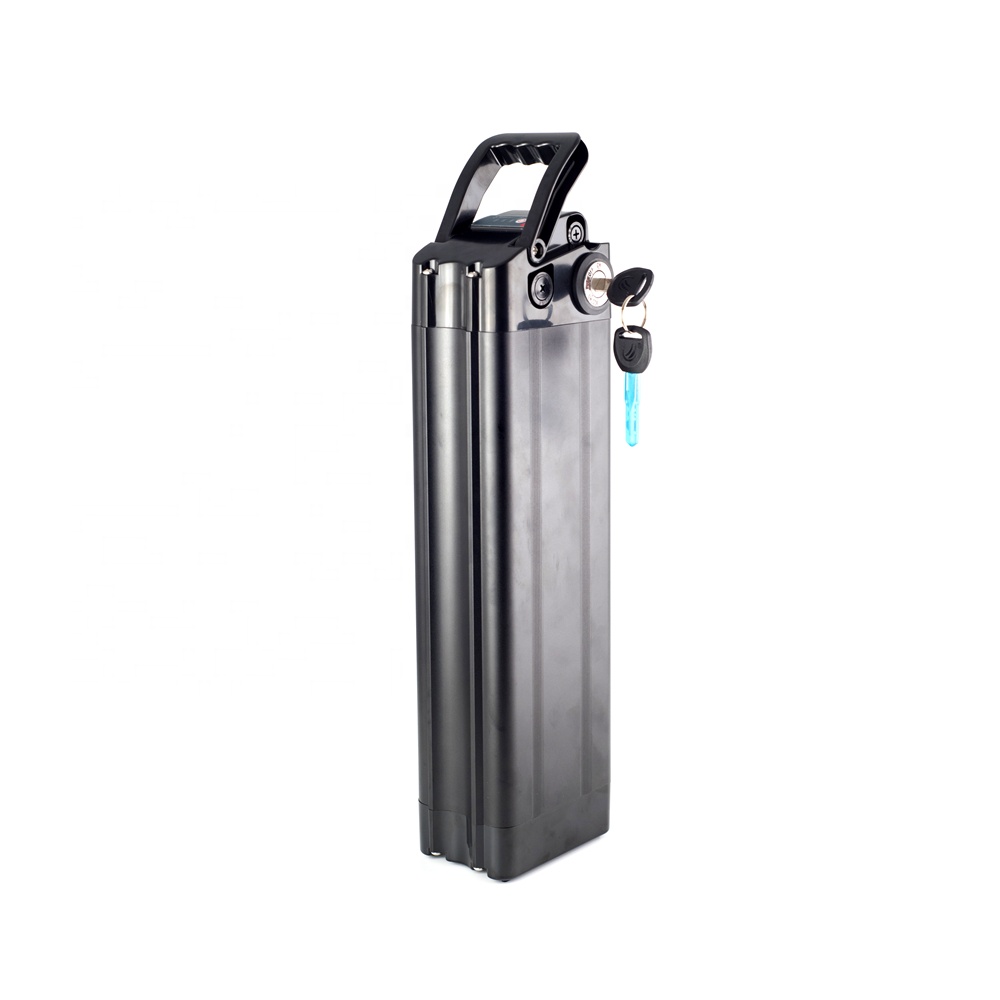

High power 48V 1000Wh electric bike battery 48V 20Ah battery pack

2022-02-17 01:48

Spesifikasie

item		Index	opmerking
Normal specification	Gemiddelde kapasiteit	20Ah	2A charge
	Gemiddelde kapasiteit	20Ah	5A discharge
	Nominale spanning	48V
	Interne weerstand	≤220mΩ
	gewig	6.5±0.1kg
	dimensie	345x104x95±2mm
Charge performance	charge mode(standard)	CC / CV
	charge current(standard)	2A	or specialized charger
	charge voltage(standard)	58.V
	Ambiance temperature	-20°C~+55°C
	charge time(h)	6~8
	Over-current fuse	4A/250V(φ5.2*20mm)
36v 10ah	48v 10ah	52v 10ah	60v 15ah
36v 13ah	48v 11.6ah	52v 10.4ah	60v 17.5ah
36v 14.5ah	48v 12.8ah	52v 11.6ah	60v 19ah
36v 16ah	48v 13ah	52v 13ah	60v 20ah
36v 17.5ah	48v 14ah	52v 14ah	60v 22ah

Kenmerke

Stabiele BMS-stelsel met kortsluitbeveiliging, oorlading-beskerming, oorontlading-beskerming en oorstroom-beskermingsvoeding.
Met ten minste meer as 500 keer lewensduur
Dit kan goed werk onder 'n ander omgewingstemperatuur
Geen geheue-effekte nie.
Geskik vir elektriese fiets, elektriese fiets, ens.
Volkapasiteitsbattery, 100% kwaliteit toets
Lang sikluslewe en hoë energiedigtheid
Kapasiteit, weerstand, spanning, platformtyd konsekwentheid is goed
Fabrieksprys en vinnige aflewering
Light weight, small size

AIN Lithium Battery Main Applications
Toepassings vir elektriese aandrywing	Engine starting battery; Slow Speed Car; Intellectual robots; Electric bicycle/Motorcycle/Scooter; Golf trolley/Carts/ Sightseeing car; Power tools.
Energie stoor	son- en windkragstelsel; stad aan / uit rooster; gemeenskap en gesin, RV Caravan, Marine yachts.
Rugsteunstelsel en UPS	telekommunikasiebasis, CATV-stelsel, rekenaarbedienersentrum, mediese instrument, militêre toerusting.
Ander toepassings	sekuriteit en elektronika; mobiele POS, mynlig / fakkel / LED-lig / noodlig.

Ons fabriek

Why us

1,Quick response,email/skype/whatsapp/wechat etc to reply you as quick as we can.

2,Ensure the satisfiied quality,All of our products are tested one by one before shipping.

3,We can promise all the price is the factory direct sale price.

4,We are the manufacture of this product in Anhui for many years.

5,We'll try our best to assist you to solve all you want to know.

For buyers

1,online talk or inquire via e-mail to sales.
2,comfirm order(quantites,colors,size,capacity,payment terms,delivery time etc.
3,Make Proforma Invoice.
4,Arrange the payment.
5,Start the order when deposit arrived.
6,Arrange shipment after 100% payment confirmed.
7,Follow up the goods by the tracking number.
8,Goods arrived and check.

Verpakking en versending

Vrae

1,Q: What's the main product in AIN?
A: Herlaaibare battery. Li-ion, Lipo-battery en kragbatterypakket.

2, V: Wat is oorbelasting?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.

3, V: Wat is oorontlading?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.

4. V: Kan ek 'n monsterbestelling kry?
A: Ja, ons aanvaar die bestelling om die kwaliteit te toets en na te gaan. Batterye kan gemaak word soos benodig.

5. V: Het u 'n MOQ-limiet?
A: Ja, ons het 'n MOQ-limiet vir massaproduksie, maar dit hang af van die batterymodel. Kontak ons gerus vir meer inligting.

6. V: Hoe gaan dit met die levertyd?
A: monsters duur 5-7 werksdae. Massaproduksie duur 25-30 dae. Dit hang af van hoeveelheid.

7. V: Hoe gaan dit met afleweringstyd?
A: Oor die algemeen word die battery via Express gestuur, soos DHL, TNT, FedEx en UPS, afleweringstyd is 3-5 werksdae. Of DDP
diens, afleweringstyd is 11-15 werksdae. Lugdiens en seevaart is ook beskikbaar.

8. V: Wat van diens na die verkope?
A: Ons bied u 1 jaar waarborg. As daar probleme is, stel ons asseblief in kennis, ons sal u positiewe oplossings bied.

Nota: Ons is 'n batteryvervaardiger. Alle produkte ondersteun nie kleinhandel nie; ons doen slegs B2B -besigheid. Kontak ons asseblief vir produkpryse!
