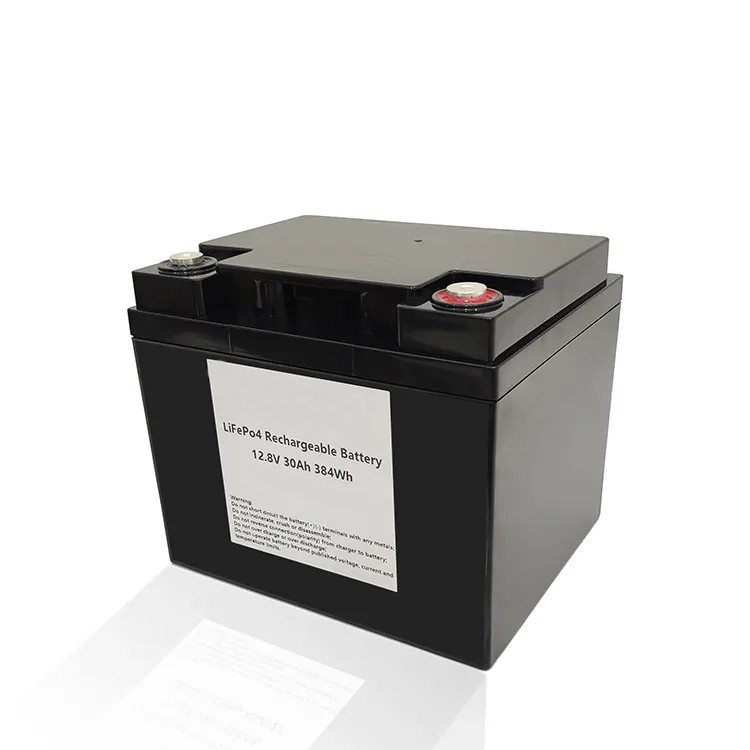

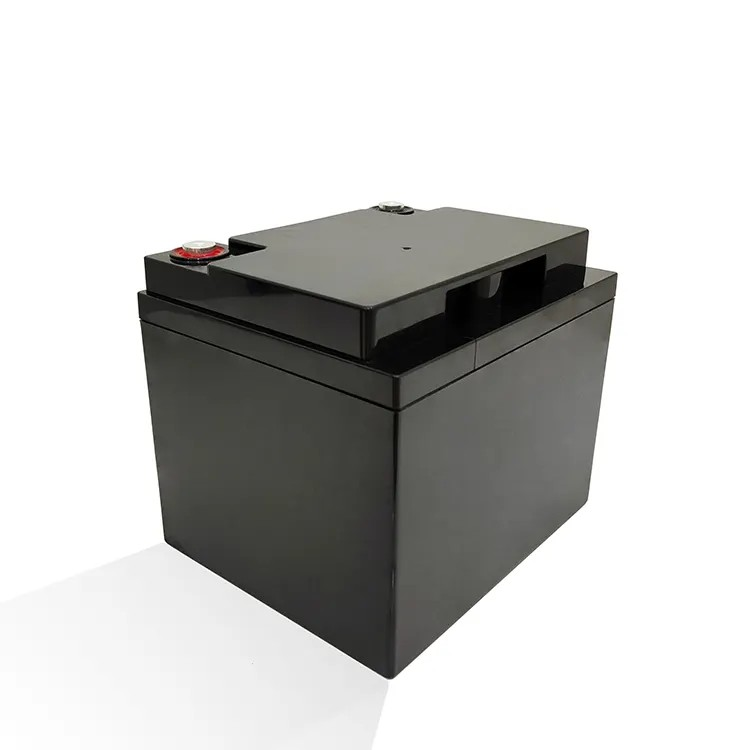

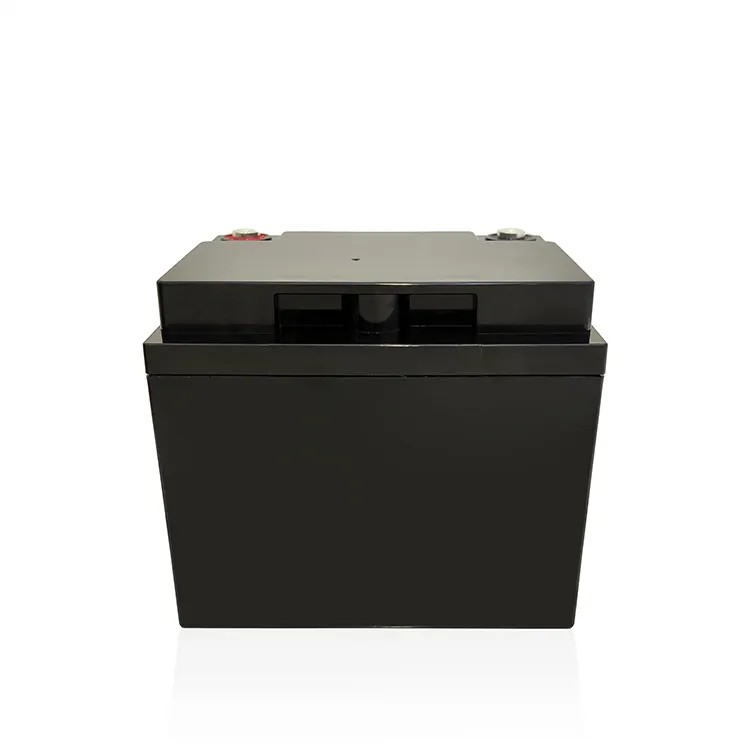

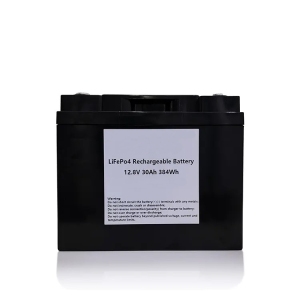

LiFePO4 Battery 12.8V 30Ah

2025-01-02 02:33

Spesifikasie

Elektriese eienskappe	Nominale spanning	12.8V
	Nominale kapasiteit	30Ah @0.2C
	energie	384Wh
	Interne weerstand	≤55mΩ
	Fietslewe	>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70%
	Maande Self ontslag	≤3,5% per maand teen 25 ℃
Standaardheffing	Laadspanning	14,6 ± 0,2V
	Charge Mode ( CC/CV)	By 0 ℃ ~ 45 ℃ temperatuur, gelaai tot 14.6v by konstante stroom van 0.2C5A, en verander dan voortdurend met konstante spanning van 14.6v totdat die stroom nie meer as 0.02C5A was nie
	Laai stroom	5A
	Maksimum laaistroom	10A
Standaard ontslag	Ontladingstroom	30A
	Maks. Deurlopende stroom	30A
	Max Plus Current	60A (<3S)
	Discharge Cut-off  Voltage	10.0V
Omgewings	Laai temperatuur	0 ℃ tot 45 ℃
	Ontladingstemperatuur	-20 ℃ tot 60 ℃
	Stoor temperatuur	0 ℃ tot 45 ℃
	Waterstofbestandheid	IP55
Meganies	Cell& Method	IFR32700 N34,4S5P
	Plastiekkas	ABS
	Afmetings (L*W*H*TH)	195*130*156*167 mm
	gewig	Ongeveer. 4.9KG
	Terminaal	M6

aansoek

1) Berging van sonenergie, huisbewaring, E-voertuigprodukte.

2)Widely applied in solar street light,wind energy storage ,UPS and telecommunication power supply, photovoltaic power station etc.

Ons fabriek

Waarom US kies?

【High-quality battery cell】: Adopts high-quality A-grade battery cell, full capacity without false labeling to support the test

【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price

【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....



Verpakking en versending

Vrae

V1: Kan ek monsters hê om te toets? En wat is die levertyd vir voorbeeldorde?
A1: Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.

V2: Wat is die waarborg vir die produkte?
A2: 1~10 years,Since our product range is wide,Minimum 12v 30Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

V3: Wat is die voordeel van u onderneming?
A3: We're direct factory,have very rich experience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.

V4: Aanvaar u OEM / ODM?
A4: Yes,welcome!

V5: Wat is die levertyd vir die massa-orde?
A5: Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

V6: Wat is die betalingsvoorwaardes?
A6: Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

V7: Watter soort sertifikaat kan aangebied word?
A7: CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
