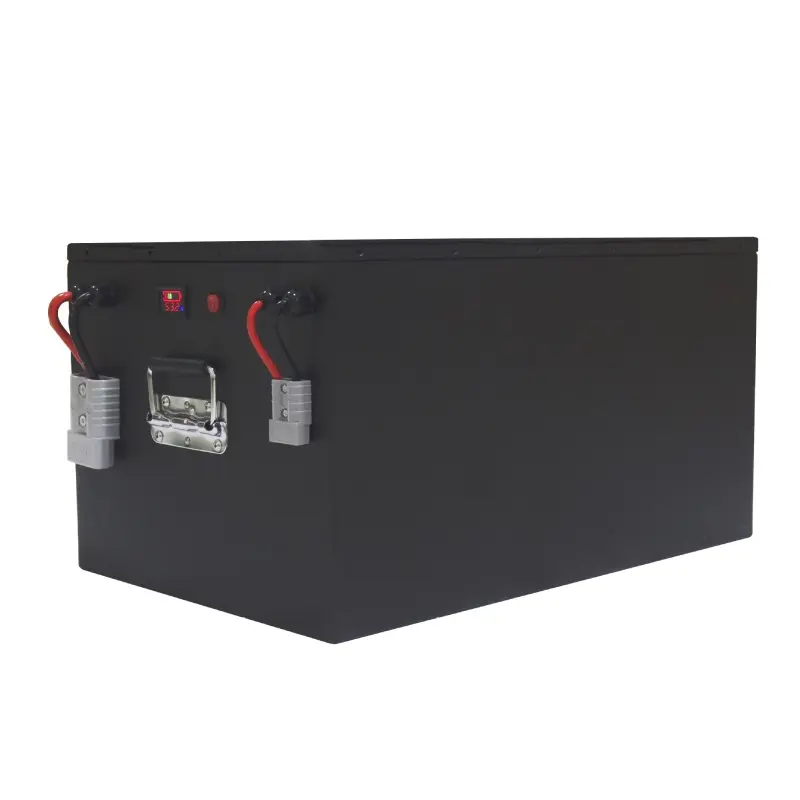

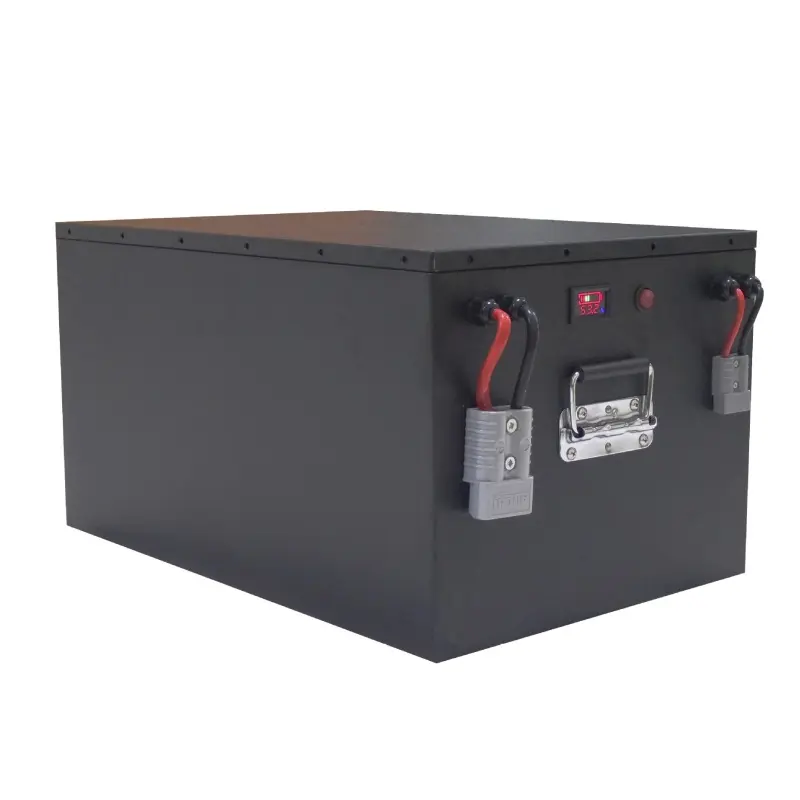

Lifepo4 Litium Yster Fosfaat Battery 72V 50Ah Vir Ebike Motorfiets RV Gholfkarretjie

2023-06-01 02:15

Spesifikasie

Nominale spanning	72V
Nominale kapasiteit	50Ah
Interne weerstand	≤220mΩ
Fietslewe	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100mA
Max.Continuous charge current	50A
Laai metode	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
gewig	≤20Kg
Ingeboude outomatiese batterybeskermingstelsel	Ja

Charge plugs and Discharge connectors optional

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

Kenmerke

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4. Verleng weerstand teen oorontlading en laai behoud

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 aansoek

aansoeke

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



Ons fabriek

Vrae

1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, V: Wat is oorbelasting?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, V: Wat is oorontlading?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. V: Kan ek 'n monsterbestelling kry?
A: Ja, ons aanvaar die bestelling om die kwaliteit te toets en na te gaan. Batterye kan gemaak word soos benodig.
5. V: Het u 'n MOQ-limiet?
A: Ja, ons het 'n MOQ-limiet vir massaproduksie, maar dit hang af van die batterymodel. Kontak ons gerus vir meer inligting.
6. V: Hoe gaan dit met die levertyd?
A: monsters duur 5-7 werksdae. Massaproduksie duur 25-30 dae. Dit hang af van hoeveelheid.
7. V: Hoe gaan dit met afleweringstyd?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. V: Wat van diens na die verkope?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
