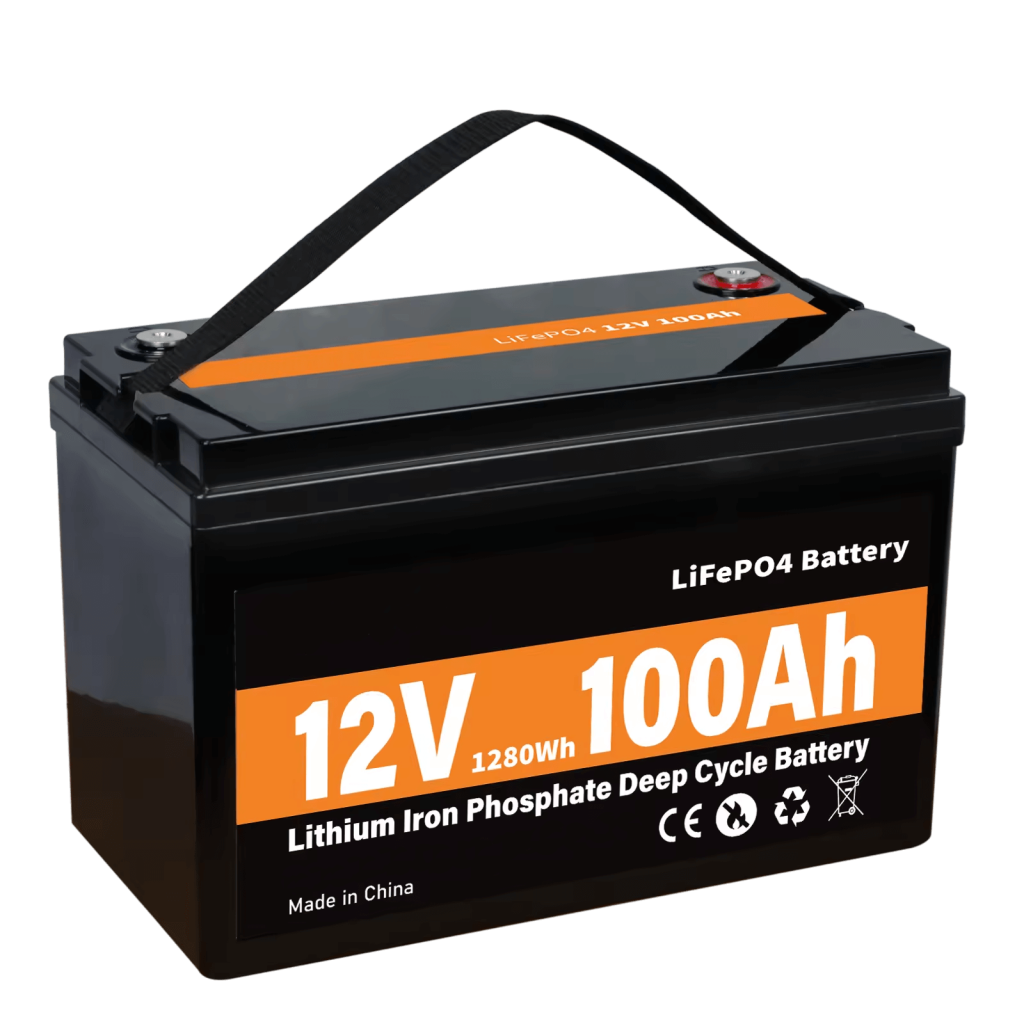

LiFePO4 Sonenergie Stoor Krag Battery 12V 100Ah

2024-02-28 03:19

Spesifikasie

OverviewGrade A Lifepo4 12V 100Ah 200Ah 24V 100Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack

#Grade A Blade Pouch Cell
#Built-in 100A BMS
#LCD Capacity Display
#2 Hrs Charge Up to 80%, 50A Charging Current
#IP65 Rated Gives Protection Against Low Pressure Water
#5-Year Warranty

spesifikasies





































BASIC SPECIFICATIONS











Model: 12V 100Ah
Rechargeable:Yes
Cell Type:LiFePO4 (LFP) Pouch Cell

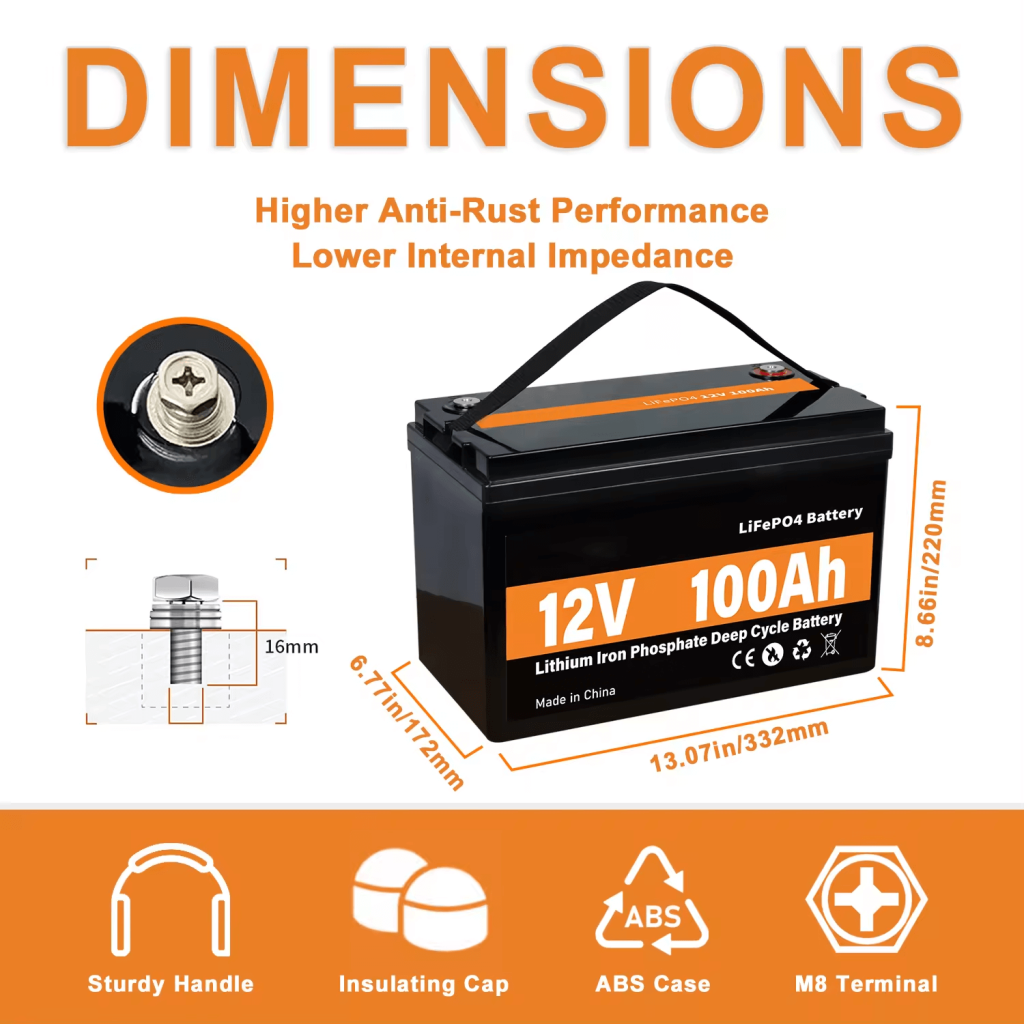

Dimensions:

L13.19 * W7.28 * H8.46 ”
L335 * W185 * H215 mm

Case Material:ABS
Warranty:5 Years
ELECTRICAL     SPECIFICATIONS















Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Nominal Energy: 1280 Wh
Standard Charge Voltage: ≤14.6 V
Max Charge Current: 50A
Discharge Cut-Off Voltage: ≥10V
Max Discharge Current: 100A
Internal Resistance: ≤30mΩ
PERFORMANCE SPECIFICATIONS









Cycle Life: ≥4000 Times (80%DoD)
Service Life: 10 Years (25°C/77°F)
Charge Temperature Range: 0~45°C (32~113°F)
Discharge Temperature Range: -20~60°C (-4~140°F)
Protection: IP65, Built-in BMS



In addition to the LiFePO4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

Key features

  1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
  2.  The shell is anti-aging, anti-corrosion, fireproof and waterproof

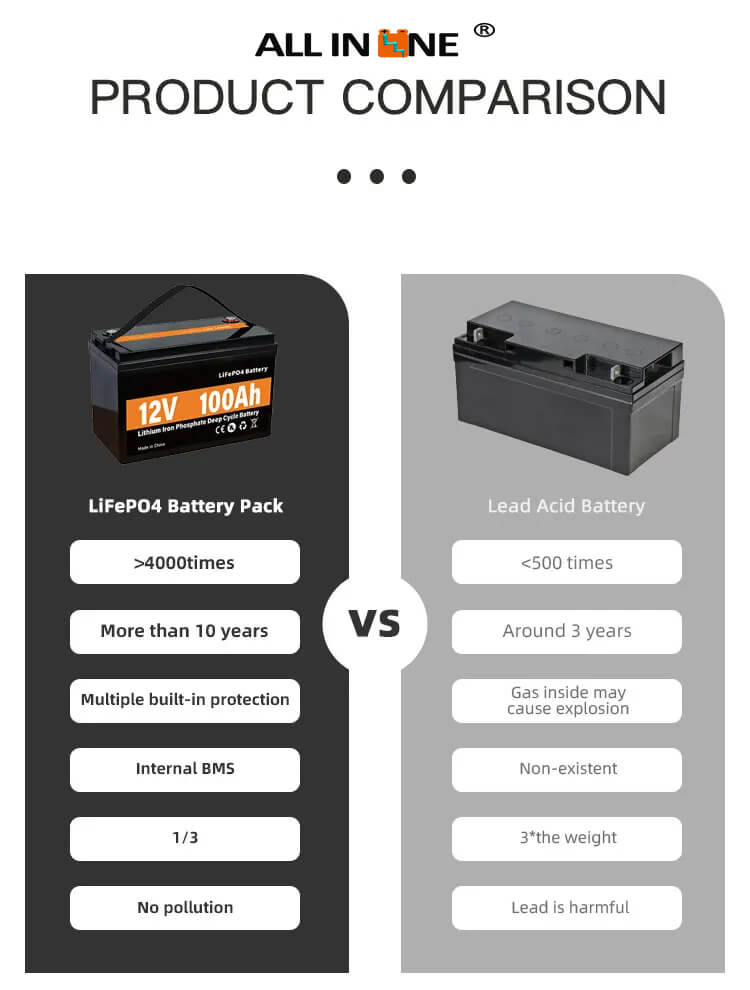

  3. It replaces lead-acid batteries, which is 50% lighter
  4.  Wide temperature operation
  5.  Safe and reliable, no explosion
  6.  Variety of protections, overcharge, overcharge, over current, over-temperature protection
  7.  Easy operation, plug and play
  8. More than 6000 cycle life

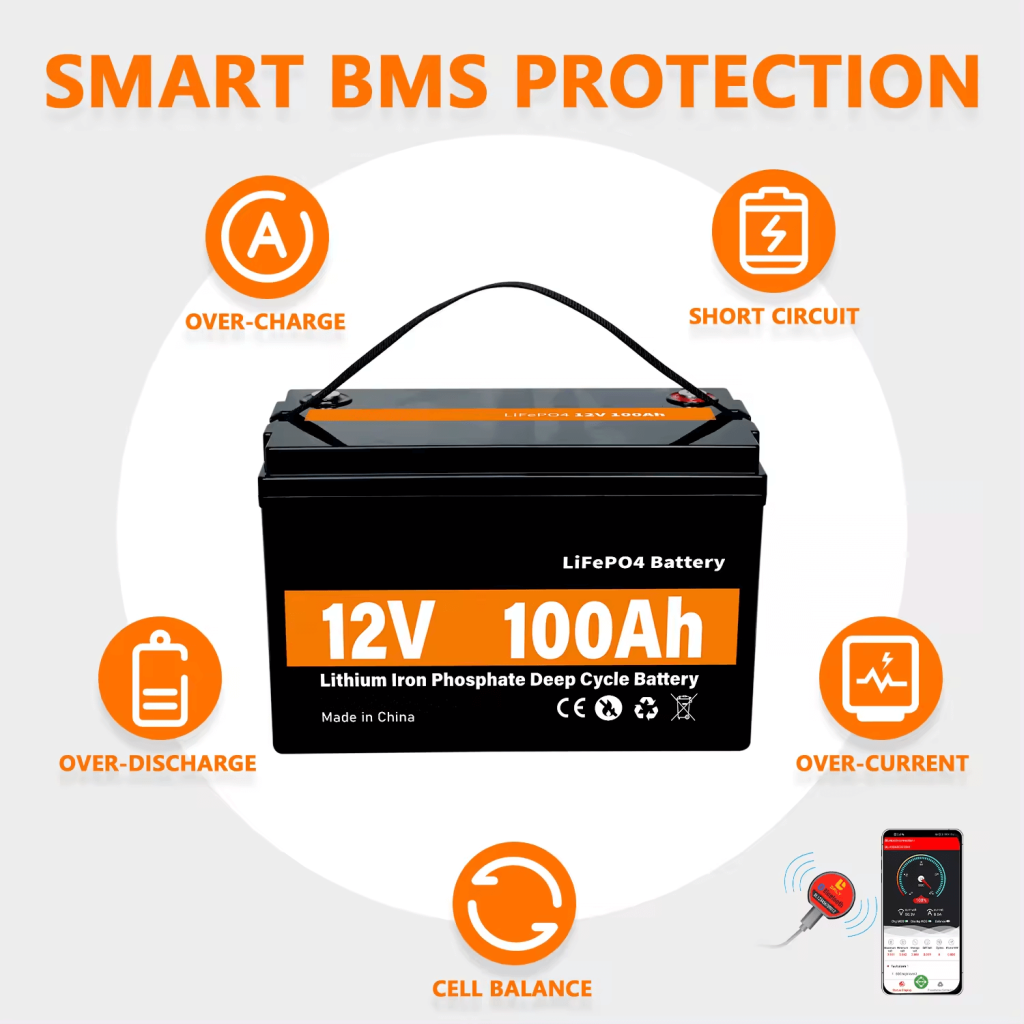

Ingeboude BMS-algehele beskerming
1.Ongelaaide beskerming
2.Over ontslaan beskerming
3.Termale beskerming
4.Onder vragbeskerming
5.Over huidige beskerming

aansoek

LiFePO4-batterytoepassings
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.

Ons fabriek



Packing And Shipment



Vrae

1.Q: Do you support a sample order?

A: Yes, welcome to order sample, we have warehouses in the United States and Europe, some samples can be quickly shipped.

2.Q: Does the product have a built-in BMS?

A: Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.

3.Q: Can your company accept customized order?

A: Of course, customization is our strength.

4.Q: Can the battery pack be compatible with the inverters on the market?

A: Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.

5.Q: How is the Warranty?

A: 5 years up-to its usage.

6.Q: Do you have any certifications?

A: CE, UN38.3 and MSDS, Pack UL1973.

7.Q: How's the delivery way and time?

A: Overseas warehouse (USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Do you have real factory?

A: Yes, our factory is in Anhui Province. We welcome you to visit our factory.

Nota: Ons is 'n batteryvervaardiger. Alle produkte ondersteun nie kleinhandel nie; ons doen slegs B2B -besigheid. Kontak ons asseblief vir produkpryse!
