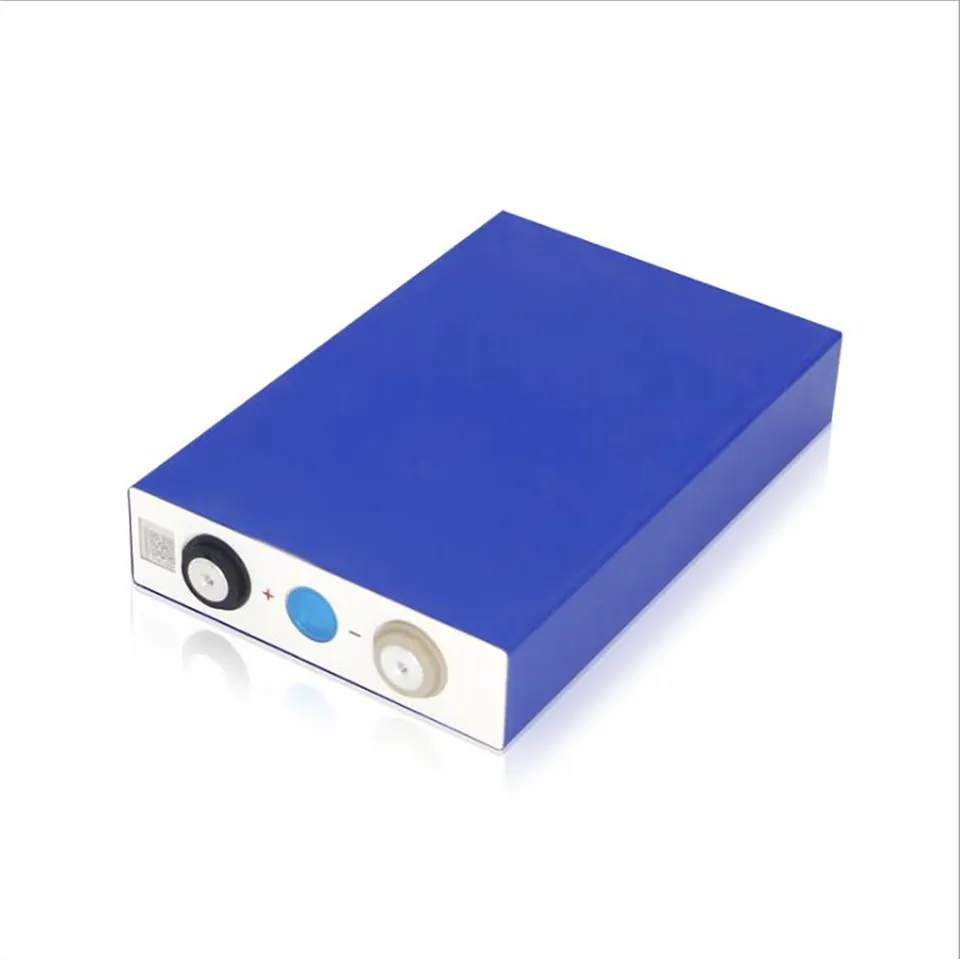

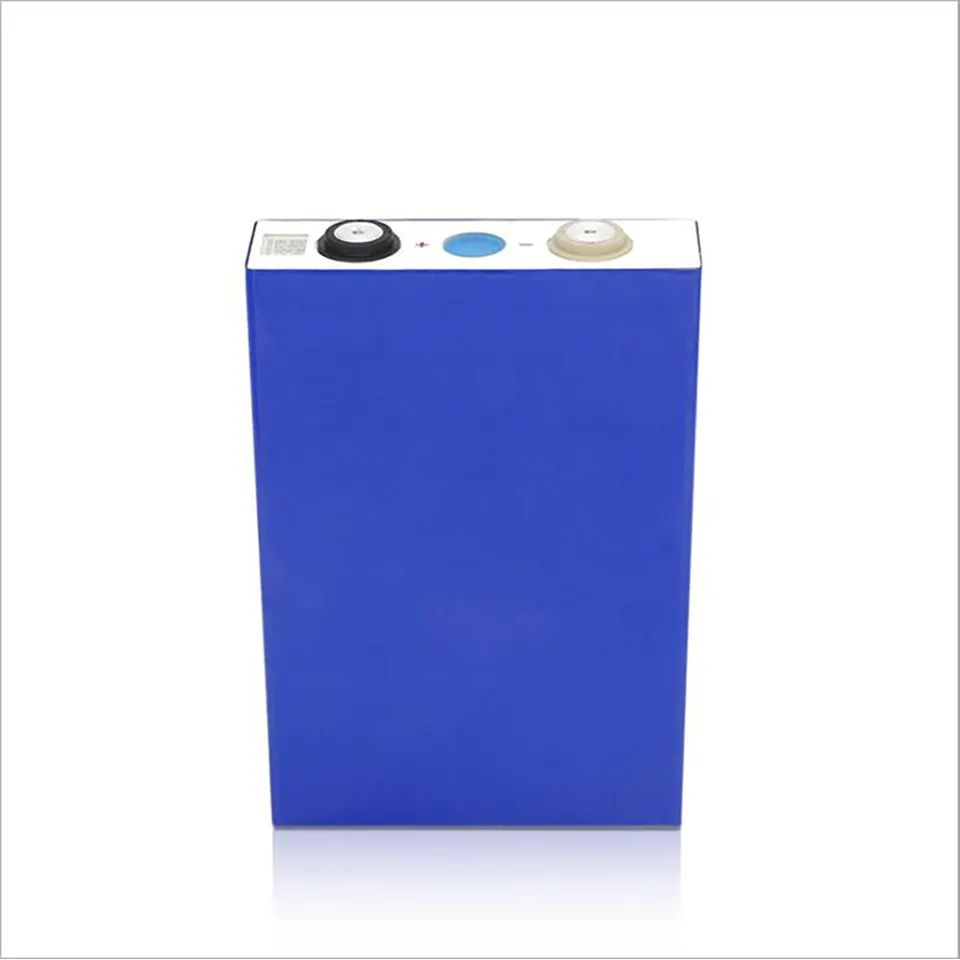

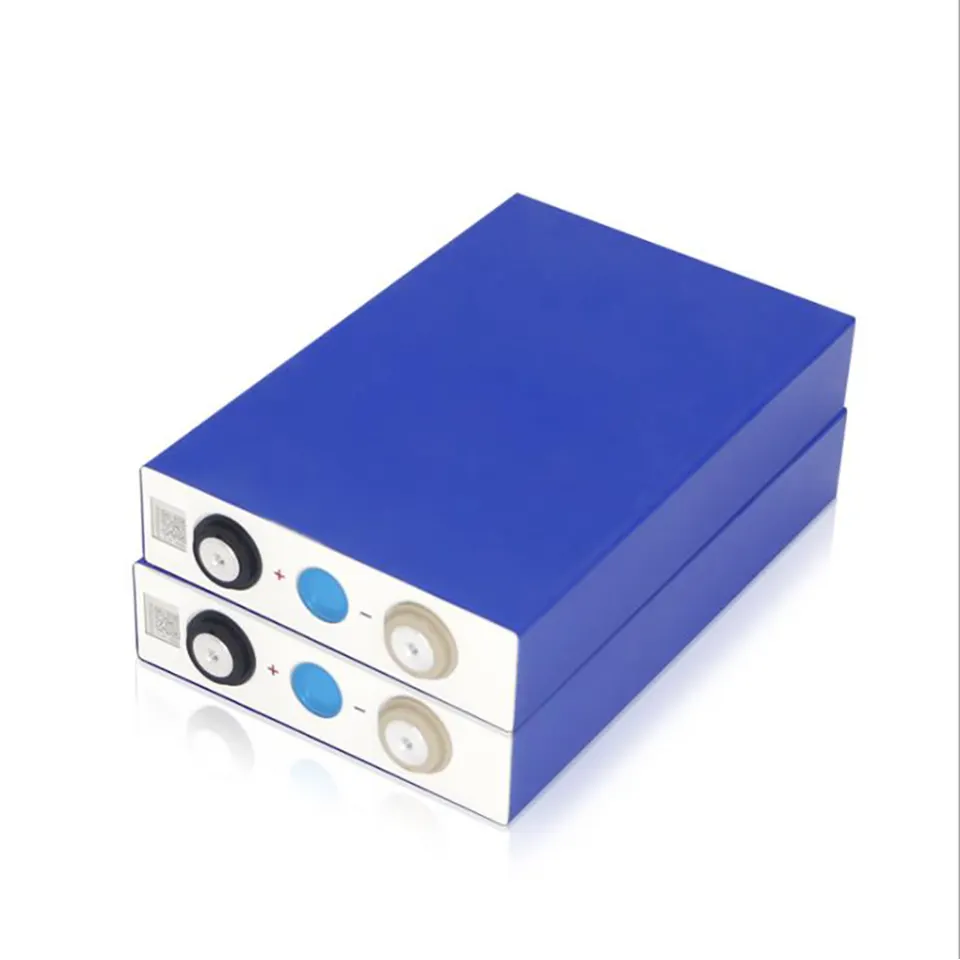

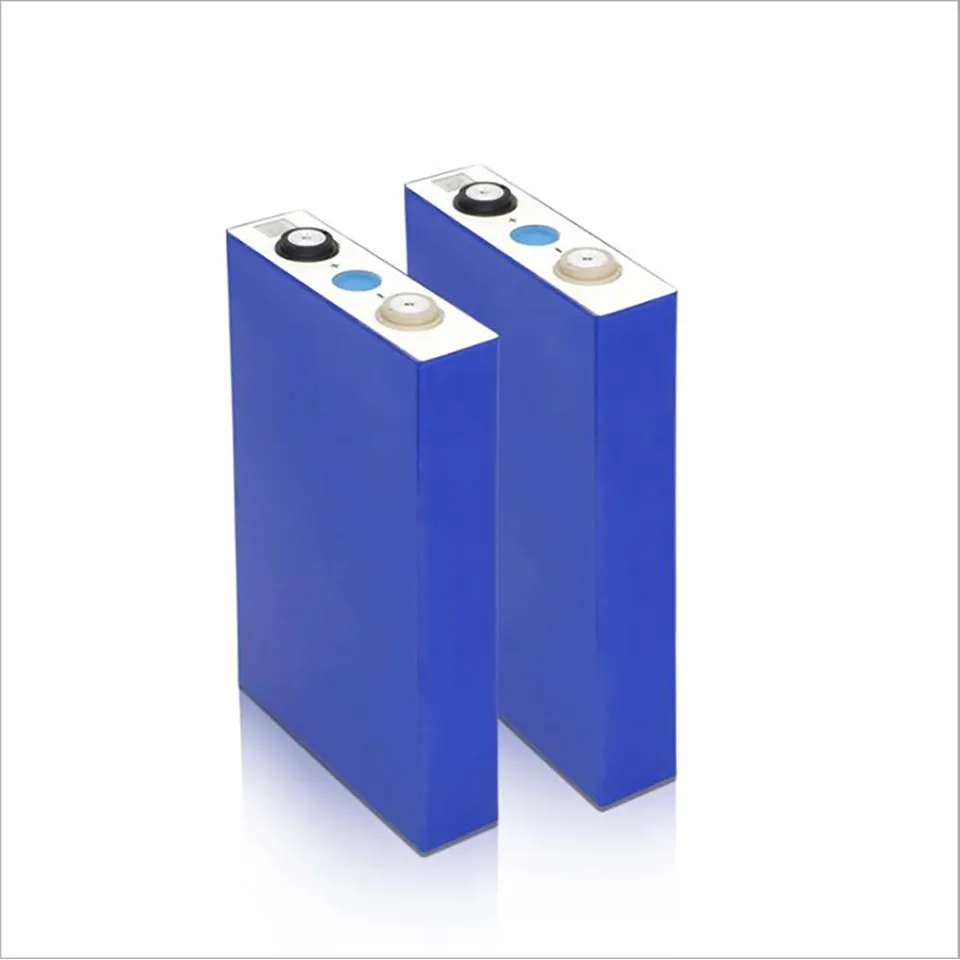

Prismatic Lifepo4 Battery 3.2V 90Ah

2023-06-13 02:44

Spesifikasie

#	item			parameter	opmerking
1	Nominale kapasiteit			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0,5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Laai temperatuur			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Ontladingstemperatuur			-20°C~55°C
9	Stoor temperatuur		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	dimensie		Breedte	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36,7 ± 0,5 mm
14			High( Total)	200,5 ± 0,5 mm
15			High（ Subject）	195,5 ± 0,5 mm
16			Tabs Distance	67,0 ± 1,0 mm
17	Gewig van die battery			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

aansoek

Ons fabriek

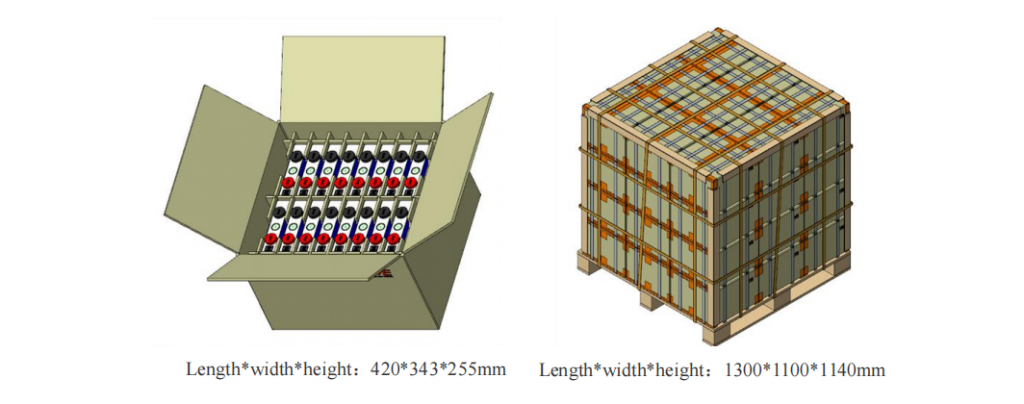

Verpakking en versending

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

stoor

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

Vrae

Q1. Kan ek 'n voorbeeldbestelling kry?
A. Ja, ons verwelkom voorbeelde om die kwaliteit te toets en na te gaan.

Q2. Wat van die leestyd?
A. Monster benodig 3 dae, massaproduksietyd benodig 5-7 weke, dit hang af van bestelhoeveelheid.

Q3. Het u enige MOQ-limiet?
A. Ja, ons het MOQ vir massaproduksie, dit hang af van die verskillende onderdeelnommers. 1 ~ 10 stuks voorbeeldbestelling is beskikbaar. Lae MOQ, 1 st vir monsterkontrole is beskikbaar.

K4. Hoe stuur u die goedere en hoe lank neem dit om te arriveer?
A. Dit neem gewoonlik 5-7 dae om te arriveer. Vliegtuig- en seevaart is ook opsioneel.

V5. Hoe kan u voortgaan met 'n bestelling?
A. Laat ons ons eers weet wat u vereistes of toepassing is. Tweedens haal ons aan volgens u vereistes of ons voorstelle. Die kliënt bevestig die monsters en plaas 'n deposito vir formele bestelling. Vierdens reël ons die produksie.

V6. Is dit in orde om my logo op die produk te druk?
A. Ja. Stel ons asseblief formeel voor ons produksie in kennis en bevestig die ontwerp eerstens op ons monster.

Q7. Watter sertifikate het u?
A: Ons het CE / FCC / ROHS / UN38.3 / MSDS ... ens.

Q8.How oor waarborg?
A: 3 jaar waarborg
